Developed by Maxell, the coin type lithium-ion rechargeable battery has a high-rate discharge characteristic of up to 2ItA by means of an original stacked electrode structure. This compact high-power rechargeable battery is designed for small portable devices such as IoT devices, wearables and hearables that have communication functions.



Topics

Sep.13, 2022 News Maxell develops the CLB640 coin type high capacity lithium-ion rechargeable battery with a diameter of approx. 6 mm and approx. 1000 charge/discharge cycle characteristics

Sep.13, 2022 Update Data sheet for coin type lithium-ion rechargeable battery “CLB640” added

Features

A unique stacked electrode structure enables power of up to 140mA (CLB2032).

Maxell’s unique stacked structure and electrode structure technology enable Maxell’s CLB2032, which has same size as a coin with a diameter of approximately 20.0mm, to discharge at high load of 140mA.

Discharge capability of CLB2032 is approximately 40 times better

Compared with Maxell’s CR2032, CLB2032 has approximately 40 times greater output discharge current at 60% available capability to meet the demand for long life due to the increased power consumption arising from multi-function equipment.

Excellent cost performance

Superior recharging properties ensure a service life of about 500 charge/discharge cycles under normal usage conditions. The superior cost/performance ratio ensures that lithium-ion batteries are ultimately more economical than primary batteries.


High reliability

Maxell has incorporated unique technologies gained during its development of crimping and electrode coating. The stainless steelbattery body minimizes swelling.

Superior safety

Separator-wrapped positive electrodes prevent to make internal short-circuit. Safety is ensured even if external short-circuit occurs.

Certification

  • UL 1642 Recognized models (Technician Replaceable): CLB2032, CLB2016, CLB937A, CLB740H
    Certification Number: MH12568
  • IEC 62133-2 Recognized models: CLB2032, CLB937A, CLB740H
  • UN 38.3 (Dangerous goods transportation regulations)
    Recognized models: CLB2032, CLB2016, CLB937A, CLB740H

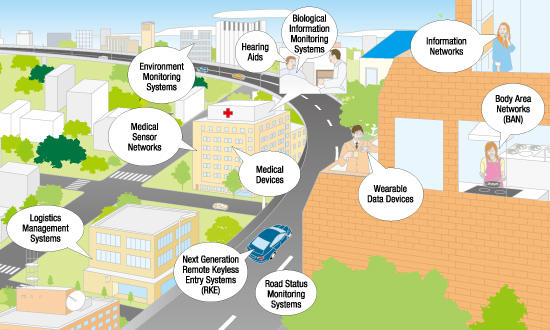

Applications

  • -Biological information monitoring systems
  • -Wearable data devices
  • -Medical sensor networks
  • -Environment monitoring systems
  • -Logistics management systems
  • -Rechargeable hearing aids
  • -Remote keyless entry systems (RKE)
  • -Multifunction watches

Specifications


Model Under development*1
CLB640
CLB740H CLB937A CLB2016 CLB2032
CLB640
CLB740H
CLB937A
CLB2016
CLB2032
Nominal voltage (V) 3.8 3.8 3.7 3.7 3.7
Nominal capacity (mAh) 13*2 19*2 18*3 30*3 70*3
Charge
(CCCV)
Max. voltage (V) 4.2 4.2 4.2 4.2 4.2
Standard current (mA) 6.5 9.5 9 15 35
Temperature (deg. C) 0 to +45 0 to +45 0 to +45 0 to +45 0 to +45
Discharge
(CC)
End voltage (V) 3.0 3.0 3.0 3.0 3.0
Max. current (mA) 13 19 36 60 140
Temperature (deg. C) -20 to +60 -20 to +60 -20 to +60 -20 to +60 -20 to +60
Initial dimensions (mm)*4 Diameter (mm) 6.8 7.85 9.5 20 20
Height
(mm)*5
4.0 4.0 3.9 2.0 3.45
Weight (g)*4 0.4 0.5 0.7 2.1 3.0
Data sheet pdf pdf pdf pdf pdf
Warnings pdf
  • Evaluation samples are available. Please contact us at your nearest Maxell office for the latest information.
  • Measured under the following conditions: Charge CCCV: 0.5ItA/4.2V /End current 0.02ItA, Discharge CC: 1mA/E.V. = 3.0V, Temperature 20 deg. C
  • Measured under the following conditions: Charge CCCV: 0.5ItA/4.2V /End current 0.03ItA, Discharge CC: 0.2ItA/E.V. = 3.0V, Temperature 20 deg. C
  • Dimensions and weight are for the battery itself, but may vary depending on terminal specifications and other factors.
  • 100% charged
  • Data and dimensions are not guaranteed. For further details, please contact us at your nearest Maxell office.
  • Contents on this website are subject to change without notice.

Charge characteristics

CLB Coin Type Lithium-ion Rechargeable Battery CLB2032 Charge characteristics



Discharge temperature characteristics

CLB Coin Type Lithium-ion Rechargeable Battery CLB2032 Discharge temperature characteristics



Discharge load characteristics

CLB Coin Type Lithium-ion Rechargeable Battery CLB2032 Discharge load characteristics



Cycle life characteristics

CLB Coin Type Lithium-ion Rechargeable Battery CLB2032 Cycle life characteristics



Safety precautions

If misused, this battery may deform, leak (the liquid inside the battery may leak to the outside), generate heat, explode, or ignite.
Since such misuse may cause injury or equipment failure, please be sure to read and observe [Warnings and Cautions].
