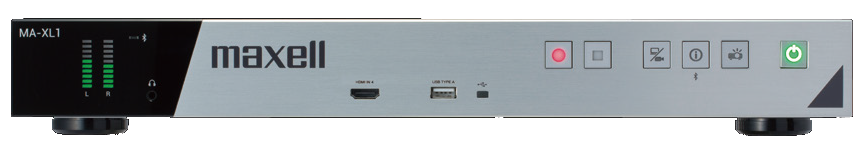

Lecture Capture Station(LCS) MA-XL1


An integrated Lecture Capture Solution with “ease of use” design concept. Featuring "Content Switching", "Record, Stream & Upload", "Instant Playback", "Remote Classroom Collaboration".



Simple on-screen icon menu for easy operation



Teacher Friendly
Multifunctional Tool for Making Lectures

By connecting to interactive projectors or interactive flat panel displays, you can operate MA-XL1's key features through the intutive, user-friendly on-screen icon menu.

 Interactive Content Switching

On-screen icons allow you to switch content during the lesson.
(10 input terminals)

 Instant Playback

You can play recorded video contents by selecting the corresponding thumbnail from the index.

You can also replay an earlier part of the ongoing recording session -while recording

 Interactive Whiteboard

You can make notes and drawings on the main screen and save the drawing by channel independently.


 Recording and screen shot capture is easy,just touch the icon.
 Change the recording layout mid-lesson.


Student Friendly,
Learn Whenever You Want,Whenever You Are


Concentrate on lectures, rather than wasting time taking notes. Watch uploaded lectures on the cloud server whenever you need. Through live- streaming, attend your class from home or anywhere else. RTMP streaming*4 protocol supports widely-used third party streaming services such as Youtube. MA-XL1 is also compatible with FTP/SFTP supported LCS cloud services such as Kaltura.
*4 RTMP live-streaming requires a server or cloud services that supports RTMP protocol. Upload function requires a server that supports FTP or SFTP protocol.

 LMS Integration*5/Cloud Service Integration

MA-XL1 can be integrated with existing Learning Management System (LMS) portals such as Moodle, to facilitate students' easy access to uploaded videos.

*5 Level of integration may vary depending on LMS provider.



Remote Classroom Optimized,Connecting Two Remote Locations to One

 Remote Classroom Colaboration

Share the same interactive screen with a remote classroom and share notes and drawings on the shared screen from both rooms. You can have a lesson with your students thousands miles away as if they were in the same classroom.

*Up to 100 client MA-XL1s can be registered on a single host MA-XL1. Remote Classroom sessions are 1-to-1 only. Only one Remote Classroom session can be held at a given time. Performance is dependent on network environment. Please contact Maxell representative or agent to discuss network requirements and performance considerations. We recommend pre-test before purchase.


Other User Friendly Features

Operate with your smartphones,tablets or with USB mouse.
Connect your smartphones to use it as a camera.
Teachers can control their PC through the connected interactive screen.
Automatically create indexes with titles and thumbnails on recordings by capturing the PowerPoint slide.*9
Scheduled recordings compatible with third party schedulers(Outlook,Google Calendar,etc).

*9 Windows PC (Windows 7 or higher) and PowerPoint 2006 or higher is required.
* The schduler cannot include cycling(repeating)event, only accept one-time event.

-PowerPoint is a trade mark of Microsoft Corporation.

-Outlook is a trade mark of Microsoft Corporation.

-Google calendar is a trade mark of Google LLC in the United States.

-Windows is a trademarks of Microsoft Corporation.

-Other trademarks and trade names are those of their respective owners.





Model name MA-XL1
MechanicalForm factor Standalone/ Rack Mount
Weightw/o Rack Mount Bracket Approx. 3.0kg
with Rack Mount Bracket Approx. 3.1kg
Dimensionw/o Rack Mount Bracket 430mm x 208mm x 60mm
(16.9" x 8.1" x 2.4")
with Rack Mount Bracket 480mm x 206mm x 60mm
(18.9" x 8.1" x 2.4")

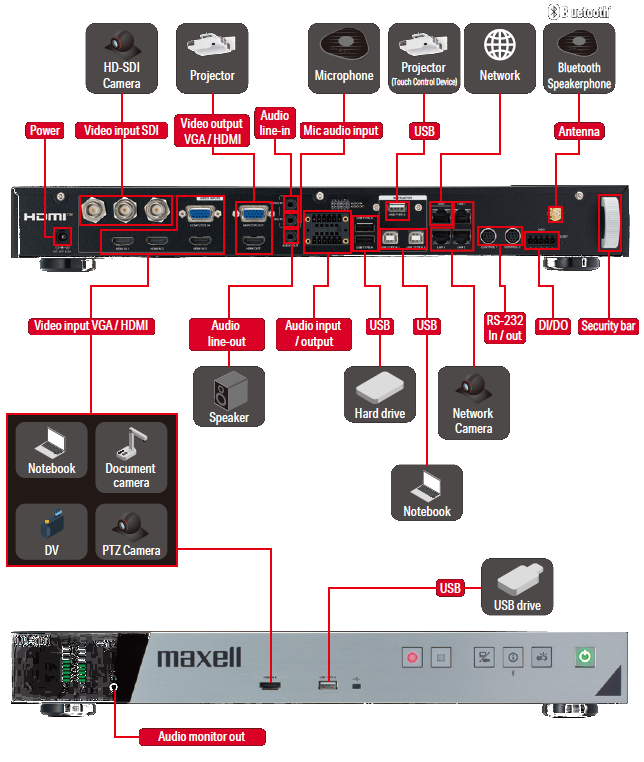

Video InputsVGA 1
Supported ResolutionVGA/HDMI 720P up to 1080P(60)
SDI 720P(60) up to 1080P(30)
Video OutputsVGA 1
Audio InputsHDMI 4 (Stereo)
Audio-in (3.5mm) 1 (Stereo)
MIC-in (3.5mm) 1 (Mono)
Phoenix Plug 1 x 6 1 (Stereo)
Bluetooth RX* 1 (Mono)
Audio OutputsHDMI 1 (Stereo)
Headset-out (3.5mm) 1 (Stereo)
Audio-out (3.5mm) 1 (Stereo)
Phoenix Plug 1 x 6 1 (Stereo)
Bluetooth TX* 1 (mono)
EthernetWAN 1
USBType-A 4
Type-B 2
DIDO Phoenix
Plug 1 x 5
Streaming InputsRJ-45 /IP 3
Streaming Format RTSP/RTP/RTMP
Video Format H.264 High/Main/Baseline
Audio Format AAC-LC
Max. Channels 3
Streaming OutputsStreaming Format RTMP/RTP
Video Format H.264 High/Main/Baseline
Audio Format AAC-LC
Supported Resolution 320x240 to 1080p(30)
Supported Bitrate 300kbps up to 4Mbps
Max. Channels


Live Streaming x 1

Conference x 1
StorageInternal HDD Capacity 1TB
Storage File Format MP4
External Storage Yes via USB Type A
Export Files

Mixed x 1

Independent x 3

Power DC 24V/2.5A
Power Consumption (Max.) 60W(Max.)
Operationg Temperature 0-40°C
Operating Humidity 10-90%RH
Included Accesories

-Power adaptor
-Power cord
-Bluetooth Anntenna
-Balance line connector (2units)
-DIDO connector
-USB number keyboard stickers
-Rack mount bracket (1pair)+M4x6mm screw (8pcs)
-User's Manual (concise)
-URL sheet

* Bluetooth microphone/speaker may not be suitable to record or reproduce high quality audio contents.

-Kaltura is a trademark of Kaltura Inc.

-Moodle is a trademark registered by Moodle.

-Youtube is a trademark of Google LLC in the United States.

-Powerpoint is a trademark of Microsoft Corporation.

-Internet Explorer is a trademark of Microsoft Corporation.

-The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG,Inc. and any use of such marks by Maxell,Ltd.is under license.

-Other trademarks and trade names are those of their respective owners.





User's Manual


Operating Guide


Safety Guide


Application software on PC


When performing operations in a web browser, select [Save].

Run executable files, such as installers and self-extracting documents, in a safe manner. To run an executable file in a safe manner, launch the executable file in a safe environment (an environment that does not contain any suspicious files, such as suspicious DLL files),as follows:

1. Download the executable file. (In a web browser, click [Save].)

2. Create a new folder.

3. Move the executable file to the folder you created.

4. Launch the executable file.

Be sure to run executable files in a safe manner, even if the executable files are stored in a file-sharing directory.

Application Information Download
Presentation tool

This application helps Users easily control their PowerPoint® Slide directly on their touch screen.



Compatible Equipment


Firmware Information Download

Password security enhancement (Default password will be denied with this update.)
Removed VNC function
Stable HDMI audio output
Fixed minor Bugs (More stable operation)



Download the latest User’s Manual (detailed) Operating Guide and read it after you update Firmware.

Open Source code Request

In order to request the appropriate source code, please submit a request form.
