Overview

Used widely in broadcasting operations including ENG/EFP, BETACAM SP provides better performance than 1-inch VTR tape, in spite of its light, compact cassette-type design. Maxell BETACAM SP videocassettes with exclusive Ceramic Armor Metal Particles and other advanced tape technologies realize high reliability and image quality.

Low Dropout

Maxell’s dust-free production facility and strict quality control, plus the tape’s highly conductive backcoating and static-resistant cassette mechanism minimize dropout. The hard case provides excellent protection from dust and exceptional support during transportation and storage.

High Reliability and Durability

A 2-3nm-thick layer of Ceramic Armor Metal Particles provides superior physical strength and anti-oxidation characteristics, and a high-performance three-dimensional cross-linking binder system dramatically improves magnetic coating layer strength. This helps keep the tape highly reliable and durable in extreme conditions (ENG/EFP) and editing operations in which long-term still modes are frequently used.

Superior Image and Sound Quality

BETACAM SP is often used for editing in which high image and sound quality are in demand. Employing fine Ceramic Armor Metal Particles for high output throughout a wide frequency range including its high frequencies, Maxell BETACAM SP videotapes provide quality and performance suitable for master tapes.

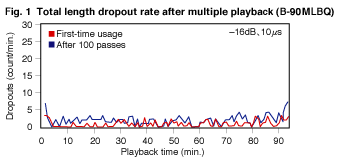

Fig1. Total length dropout rate after multiple playback(B-90MLBQ)

Fig2. Dropout rate after multiple playback(B-90MLBQ)

Product Lineup

UnitTypical value
Physical propertiesTape width mm 12.650
Tape thickness μm 14.5
Magnetic layer thickness μm 3.0
Base film thickness μm 10.5
Backcoating thickness μm 1.0
Yield strength N (kgf) 25 (2.6)
Breaking strength N (kgf) 44 (4.5)
Residual elongation % 0.07
Magnetic layer electrical resistance Ω/sq. 1 × 1010
Magnetic propertiesCoercivity (Hc) kA/m (Oe) 121 (1,520)
Retentivity (Br) mT (G) 250 (2,500)
Squareness ratio (Br/Bm) - 0.88
Video propertiesRF output (7.0MHz) dB 0
Video S/N* dB 0
Dropouts (-16dB, 10μs) count/min. 3
Still life min. more than 120
Audio propertiesSensitivity (1kHz)* dB 0
Frequency response (15kHz/1kHz) dB 0
Erasing effect dB 73

Specifications

Cassette sizeModelTape lengthRecording time (min.)Dimensions (mm)Pcs/caseWeight (kg)
(m)(ft.)NTSCPALCassette Case w/caseper package
LB-90MLBQ 670 2,189 94 110 254 × 145 × 25 271 × 162 × 33 10 pcs 0.76 8.1
B-60MLBQ 457 1,499 64 75 0.70 7.5
B-30MLBQ 243 797 34 39 0.63 6.8
SB-30MBQ 222 728 31 36 156 × 96 × 25 172 × 111 × 33 50 pcs
(10 pcs
inner × 5)
0.29 16.3
B-20MBQ 150 492 21 24 0.27 15.4
B-10MBQ 78 256 11 12 0.25 14.4
B-5MBQ 42 138 6 6 0.24 13.7
  • Indicates a comparison with MAXELL reference tape.
  • BETACAM SP is a trademark of Sony Corporation.
